index_merge sort_intersection
Prior to MariaDB 5.3, the index_merge access method supported union,
sort-union, and intersection operations. Starting from MariaDB 5.3, the
sort-intersection operation is also supported. This allows the use of
index_merge in a broader number of cases.
This feature is disabled by default. To enable it, turn on the optimizer switch
index_merge_sort_intersection like so:
SET optimizer_switch='index_merge_sort_intersection=on'

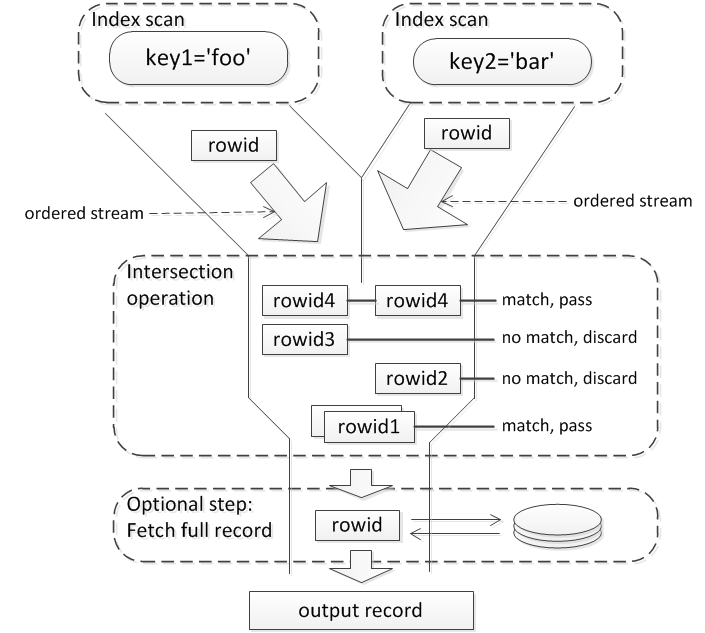

Limitations of index_merge/intersection
Prior to MariaDB 5.3, the index_merge access method had one intersection
strategy called intersection. That strategy can only be used when merged
index scans produced rowid-ordered streams. In practice this means that an
intersection could only be constructed from equality (=) conditions.
For example, the following query will use intersection:
MySQL [ontime]> EXPLAIN SELECT AVG(arrdelay) FROM ontime WHERE depdel15=1 AND OriginState ='CA'; +--+-----------+------+-----------+--------------------+--------------------+-------+----+-----+-------------------------------------------------+ |id|select_type|table |type |possible_keys |key |key_len|ref |rows |Extra | +--+-----------+------+-----------+--------------------+--------------------+-------+----+-----+-------------------------------------------------+ | 1|SIMPLE |ontime|index_merge|OriginState,DepDel15|OriginState,DepDel15|3,5 |NULL|76952|Using intersect(OriginState,DepDel15);Using where| +--+-----------+------+-----------+--------------------+--------------------+-------+----+-----+-------------------------------------------------+
but if you replace OriginState ='CA' with OriginState IN ('CA', 'GB')
(which matches the same number of records), then intersection is not usable
anymore:
MySQL [ontime]> explain select avg(arrdelay) from ontime where depdel15=1 and OriginState IN ('CA', 'GB'); +--+-----------+------+----+--------------------+--------+-------+-----+-----+-----------+ |id|select_type|table |type|possible_keys |key |key_len|ref |rows |Extra | +--+-----------+------+----+--------------------+--------+-------+-----+-----+-----------+ | 1|SIMPLE |ontime|ref |OriginState,DepDel15|DepDel15|5 |const|36926|Using where| +--+-----------+------+----+--------------------+--------+-------+-----+-----+-----------+
The latter query would also run 5.x times slower (from 2.2 to 10.8 seconds) in our experiments.

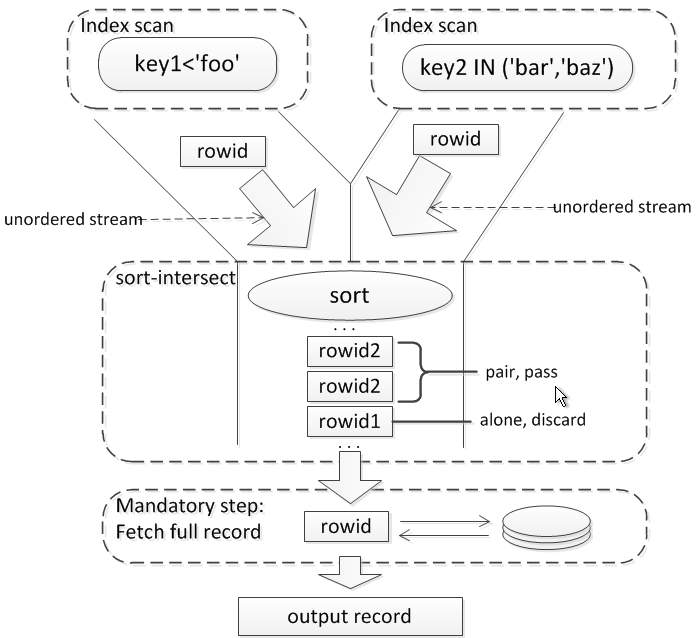

How index_merge/sort_intersection improves the situation
In MariaDB 5.3, when index_merge_sort_intersection is enabled,
index_merge intersection plans can be constructed from non-equality
conditions:
MySQL [ontime]> explain select avg(arrdelay) from ontime where depdel15=1 and OriginState IN ('CA', 'GB'); +--+-----------+------+-----------+--------------------+--------------------+-------+----+-----+--------------------------------------------------------+ |id|select_type|table |type |possible_keys |key |key_len|ref |rows |Extra | +--+-----------+------+-----------+--------------------+--------------------+-------+----+-----+--------------------------------------------------------+ | 1|SIMPLE |ontime|index_merge|OriginState,DepDel15|DepDel15,OriginState|5,3 |NULL|60754|Using sort_intersect(DepDel15,OriginState); Using where | +--+-----------+------+-----------+--------------------+--------------------+-------+----+-----+--------------------------------------------------------+
In our tests, this query ran in 3.2 seconds, which is not as good as the case
with two equalities, but still much better than 10.8 seconds we were getting
without sort_intersect.

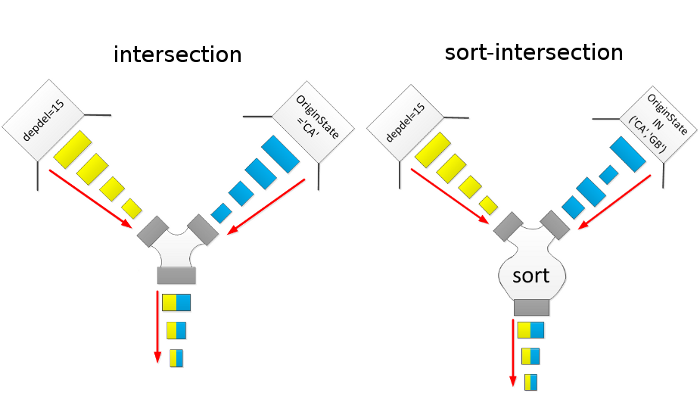

The sort_intersect strategy has higher overhead than intersect but is
able to handle a broader set of WHERE conditions.
When to Use
index_merge/sort_intersection works best on tables with lots of records and
where intersections are sufficiently large (but still small enough to make a
full table scan overkill).
The benefit is expected to be bigger for io-bound loads.
