DBT3 Benchmark Results MyISAM
Contents
Introduction
This page shows the results for benchmarking the following configuration:
- MariaDB 5.3.2 + MyISAM
- MariaDB 5.5.18 + MyISAM
- MySQL 5.5.19 + MyISAM
- MySQL 5.6.4 + MyISAM
The test is performed using the automation script /mariadb-tools/dbt3_benchmark/launcher.pl
.
Details about this automation script can be found on the DBT3 automation scripts page.
Hardware
The tests were performed on our facebook-maria1
machine. It has the following parameters:
- CPU: 16 Intel® Xeon® CPU L5520 @ 2.27GHz
- Memory: Limited to 16 GB out of 72 by adding 'mem=16G' parameter to /boot/grub/menu.lst
- Logical disk: HDD 2 TB
- Operating system:
Scale factor 30
This test was performed with the following parameters:
- Scale factor: 30
- Query timeout: 2 hours
- Number of tests per query: 1
- Total DB size on disk: about 50GB
- Available memory: 16 GB
NOTE: The available memory is controlled by a parameter mem=16G
added to the file /boot/grub/menu.lst
Steps to reproduce
Follow the instructions in DBT3 automation scripts to prepare the environment for the test.
Before you run the test, ensure that the settings in the test configuration files match your prepared environment. For more details on the test configuration, please, refer to the Test configuration parameters.
After the environment is prepared, the following command should be executed in the shell:
perl launcher.pl \ --results-output-dir=/home/mariadb/benchmark/dbt3/results/myisam_test \ --project-home=/home/mariadb/benchmark/dbt3/ \ --datadir=/home/mariadb/benchmark/dbt3/db_data/ \ --test=./tests/myisam_test_mariadb_5_3_mysql_5_5_mysql_5_6.conf \ --queries-home=/home/mariadb/benchmark/dbt3/gen_query/ --scale-factor=30 \ --TIMEOUT=7200
Compared configurations
The following configurations have been compared in this test:
Case 1: MariaDB 5.3.2 + MyISAM
Here are the common options that the mysqld server was started with:
net_read_timeout = 300 net_write_timeout = 600 key_buffer_size = 3G skip-external-locking key_buffer = 16M max_allowed_packet = 16M table_open_cache = 1024 thread_cache = 512 sort_buffer_size = 512K net_buffer_length = 8K read_buffer_size = 256K read_rnd_buffer_size = 512K myisam_sort_buffer_size = 8M max_connections = 256 query_cache_size = 0 query_cache_type = 0 sql-mode = NO_ENGINE_SUBSTITUTION #Per-test optimizations optimizer_switch='index_merge=on' optimizer_switch='index_merge_union=on' optimizer_switch='index_merge_sort_union=on' optimizer_switch='index_merge_intersection=on' optimizer_switch='index_merge_sort_intersection=off' optimizer_switch='index_condition_pushdown=on' optimizer_switch='derived_merge=on' optimizer_switch='derived_with_keys=on' optimizer_switch='firstmatch=off' optimizer_switch='loosescan=off' optimizer_switch='materialization=on' optimizer_switch='in_to_exists=on' optimizer_switch='semijoin=on' optimizer_switch='partial_match_rowid_merge=on' optimizer_switch='partial_match_table_scan=on' optimizer_switch='subquery_cache=off' optimizer_switch='mrr=on' optimizer_switch='mrr_cost_based=off' optimizer_switch='mrr_sort_keys=on' optimizer_switch='outer_join_with_cache=on' optimizer_switch='semijoin_with_cache=off' optimizer_switch='join_cache_incremental=on' optimizer_switch='join_cache_hashed=on' optimizer_switch='join_cache_bka=on' optimizer_switch='optimize_join_buffer_size=on' optimizer_switch='table_elimination=on' join_buffer_space_limit = 3072M join_buffer_size = 1536M join_cache_level = 6 mrr_buffer_size = 96M tmp_table_size = 96M max_heap_table_size = 96M
Case 2: MariaDB 5.5.18 + MyISAM
Uses the same configuration file as MariaDB 5.3.2 in Case 1.
Case 3: MySQL 5.5.19 + MyISAM
Here are the common options that the mysqld server was started with:
net_read_timeout = 300 net_write_timeout = 600 key_buffer_size = 3G skip-external-locking key_buffer = 16M max_allowed_packet = 16M table_open_cache = 1024 thread_cache = 512 sort_buffer_size = 512K net_buffer_length = 8K read_buffer_size = 256K myisam_sort_buffer_size = 8M max_connections = 256 query_cache_size = 0 query_cache_type = 0 sql-mode = NO_ENGINE_SUBSTITUTION join_buffer_size = 1536M tmp_table_size = 96M max_heap_table_size = 96M read_rnd_buffer_size = 96M
Case 4: MySQL 5.6.4 + MyISAM
Here are the common options that the mysqld server was started with:
net_read_timeout = 300 net_write_timeout = 600 key_buffer_size = 3G skip-external-locking key_buffer = 16M max_allowed_packet = 16M table_open_cache = 1024 thread_cache = 512 sort_buffer_size = 512K net_buffer_length = 8K read_buffer_size = 256K myisam_sort_buffer_size = 8M max_connections = 256 query_cache_size = 0 query_cache_type = 0 sql-mode = NO_ENGINE_SUBSTITUTION optimizer_switch='mrr=on' optimizer_switch='mrr_cost_based=off' optimizer_switch='batched_key_access=on' optimizer_switch='index_condition_pushdown=on' join_buffer_size = 1536M tmp_table_size = 96M max_heap_table_size = 96M read_rnd_buffer_size = 96M
The server has been restarted between each query run and the caches have been cleared between each query run.
Results (without q20)

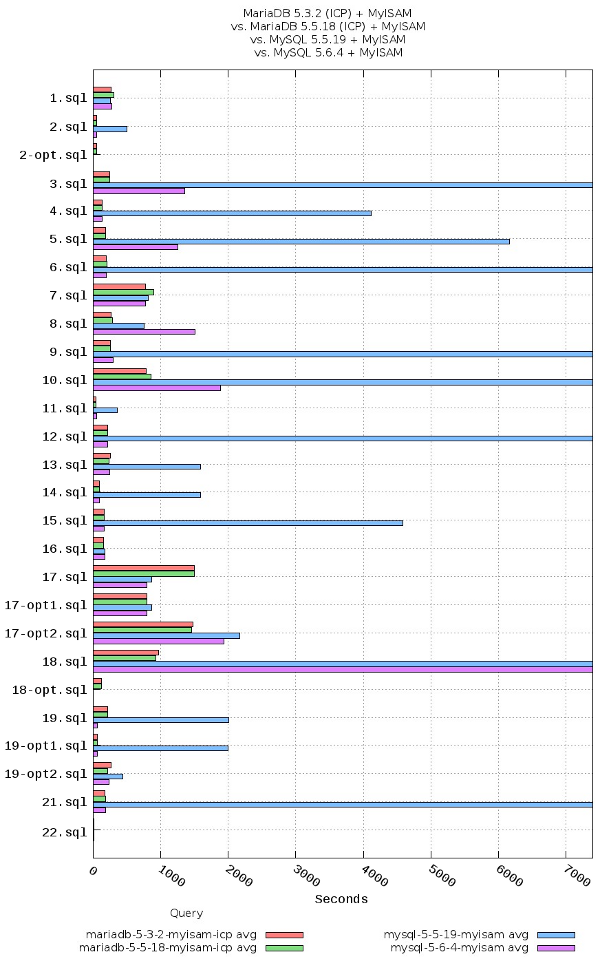

Here is the graphics of the results:
(Smaller bars are better)
NOTE: Queries that are cut off by the graphics have timed out the period of 2 hours.
Here are the actual results in seconds (smaller is better):
Configuration | MariaDB 5.3.2 + MyISAM | Ratio | MariaDB 5.5.18 + MyISAM | Ratio | MySQL 5.5.19 + MyISAM | Ratio | MySQL 5.6.4 + MyISAM | Ratio |
---|---|---|---|---|---|---|---|---|
1.sql | 261 | 1.00 | 308 | 1.18 | 259 | 0.99 | 277 | 1.06 |
2.sql | 47 | 1.00 | 48 | 1.02 | 499 | 10.62 | 49 | 1.04 |
2-opt.sql | 46 | 1.00 | 48 | 1.04 | - | - | - | - |
3.sql | 243 | 1.00 | 246 | 1.01 | >7200 | - | 1360 | 5.60 |
4.sql | 137 | 1.00 | 135 | 0.99 | 4117 | 30.05 | 137 | 1.00 |
5.sql | 181 | 1.00 | 187 | 1.03 | 6164 | 34.06 | 1254 | 6.93 |
6.sql | 198 | 1.00 | 205 | 1.04 | >7200 | - | 194 | 0.98 |
7.sql | 779 | 1.00 | 896 | 1.15 | 814 | 1.04 | 777 | 1.00 |
8.sql | 270 | 1.00 | 287 | 1.06 | 749 | 2.77 | 1512 | 5.60 |
9.sql | 252 | 1.00 | 254 | 1.01 | >7200 | - | 298 | 1.18 |
10.sql | 782 | 1.00 | 854 | 1.09 | >7200 | - | 1881 | 2.41 |
11.sql | 45 | 1.00 | 36 | 0.80 | 357 | 7.93 | 49 | 1.09 |
12.sql | 211 | 1.00 | 217 | 1.03 | >7200 | - | 213 | 1.01 |
13.sql | 251 | 1.00 | 236 | 0.94 | 1590 | 6.33 | 244 | 0.97 |
14.sql | 88 | 1.00 | 91 | 1.03 | 1590 | 18.07 | 94 | 1.07 |
15.sql | 162 | 1.00 | 164 | 1.01 | 4580 | 28.27 | 165 | 1.02 |
16.sql | 154 | 1.00 | 152 | 0.99 | 174 | 1.13 | 173 | 1.12 |
17.sql | 1493 | 1.00 | 1495 | 1.00 | 865 | 0.58 | 794 | 0.53 |
17-opt1.sql | 795 | 1.00 | 794 | 1.00 | 862 | 1.08 | 794 | 1.00 |
17-opt2.sql | 1482 | 1.00 | 1458 | 0.98 | 2167 | 1.46 | 1937 | 1.31 |
18.sql | 971 | 1.00 | 931 | 0.96 | >7200 | - | >7200 | - |
18-opt.sql | 121 | 1.00 | 125 | 1.03 | - | - | - | - |
19.sql | 212 | 1.00 | 212 | 1.00 | 2004 | 9.45 | 61 | 0.29 |
19-opt1.sql | 59 | 1.00 | 59 | 1.00 | 1999 | 33.88 | 61 | 1.03 |
19-opt2.sql | 260 | 1.00 | 216 | 0.83 | 443 | 1.70 | 236 | 0.91 |
20.sql | - | - | - | - | - | - | - | - |
21.sql | 173 | 1.00 | 179 | 1.03 | >7200 | - | 183 | 1.06 |
22.sql | 13 | 1.00 | 14 | 1.08 | 10 | 0.77 | 13 | 1.00 |
Version | 5.3.2-MariaDB-beta | 5.5.18-MariaDB | 5.5.19 | 5.6.4-m7 | ||||
Query and explain details | Explain details | Explain details | Explain details | Explain details |
NOTE: The columns named "Ratio" are calculated values of the ratio between the
current value compared to the value in the first test configuration. The
formula for it is (current_value/value_in_first_row)
. For example if MariaDB
5.3.2 (the first column) handles a query for 100 seconds and MySQL 5.6.4 (the last
configuration) handles the same query for 120 seconds, the ratio will be
120/100 = 1.20
. This means that it takes MySQL 5.6.4 20% more time to handle
the same query.
The archived folder with all the results and details for that benchmark can be downloaded from here: MyISAM s30 on facebook-maria1
Notes
Queries 2-opt.sql and 18-opt.sql are tested only for MariaDB 5.3.2 and MariaDB 5.5.18
- Additional startup parameters for 2_opt:
--optimizer_switch='mrr_sort_keys=off'
- Additional startup parameters for 18_opt:
--optimizer_switch='semijoin=off' --optimizer_switch='index_condition_pushdown=on'
- Additional modifications for 17-opt1:
select sum(l_extendedprice) / 7.0 as avg_yearly from part straight_join lineitem where p_partkey = l_partkey ...
- Additional modifications for 17-opt2:
select sum(l_extendedprice) / 7.0 as avg_yearly from lineitem straight_join part where p_partkey = l_partkey ...
- Additional modifications for 19-opt1:
select sum(l_extendedprice* (1 - l_discount)) as revenue from part straight_join lineitem where ( p_partkey = l_partkey ...
- Additional modifications for 19-opt2:
select sum(l_extendedprice* (1 - l_discount)) as revenue from lineitem straight_join part where ( p_partkey = l_partkey ...
Benchmark for q20
This benchmarked only q20 with the same settings as described above for the other queries. The only difference is the timeout that was used: 30000 seconds (8 hours and 20 min).
Compared cases
The benchmark for q20 compares the following cases:
- q20.sql - the original query is run with the IN-TO-EXISTS strategy for all servers.
The following optimizer switches were used for MariaDB:
--optimizer_switch='in_to_exists=on,materialization=off,semijoin=off';
- q20-opt0.sql - the original query is changed so that the same join order is chosen as
for the two subsequent variants that test materialization where this order is optimal.
The join order is:
select s_name, s_address from supplier, nation where s_suppkey in (select distinct (ps_suppkey) from '''part straight_join partsupp''' where ps_partkey = p_partkey ...
- Since the IN-TO-EXISTS strategy is essentially the same for both MariaDB and MySQL, this query was tested for MySQL only.
- q20-opt1.sql - modifies the original query in two ways:
- enforces the MATERIALIZATION strategy, and
- enforces an optimal JOIN order via straight_join as follows:
select s_name, s_address from supplier, nation where s_suppkey in (select distinct (ps_suppkey) from '''part straight_join partsupp''' where ps_partkey = p_partkey ...
q20-opt1.sql uses the following optimizer switches for MariaDB:
--optimizer_switch='in_to_exists=off,materialization=on,semijoin=off';
- q20-opt2.sql - the same as q20-opt1.sql but allows the optimizer to choose
the subquery strategy via the following switch:
--optimizer_switch='in_to_exists=on,materialization=on,semijoin=on';
- This switch results in the choice of SJ-MATERIALIZATION.
NOTE: For MySQL there are no such optimizer-switch parameters, and the tests were started without any additional startup parameters. The default algorithm in MySQL is in_to_exists.
Results for q20

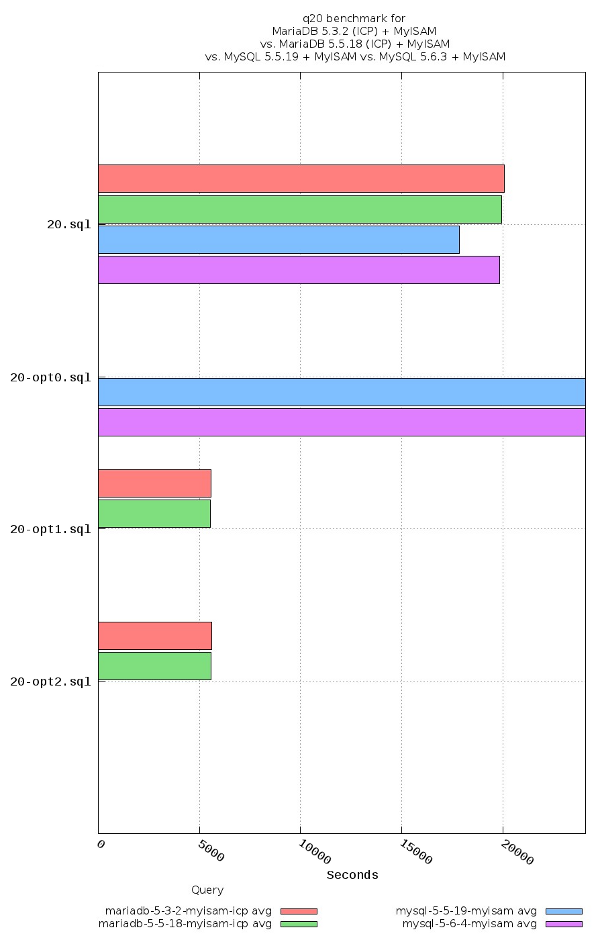

Here is the graphics of the results of the benchmarked q20: (Smaller bars are better)
NOTE: Queries that are cut off by the graphics have timed out the period of 30000 seconds.
Here are the actual results in seconds (smaller is better):
Configuration | 20.sql | 20-opt0.sql | 20-opt1.sql | 20-opt2.sql | Version | Query and explain details |
---|---|---|---|---|---|---|
MariaDB 5.3.2 + MyISAM | 20070 | - | 5560 | 5615 | 5.3.2-MariaDB-beta | Explain details |
MariaDB 5.5.18 + MyISAM | 19922 | - | 5529 | 5572 | 5.5.18-MariaDB | Explain details |
MySQL 5.5.19 + MyISAM | 17832 | >30000 | - | - | 5.5.19 | Explain details |
MYSQL 5.6.4 + MyISAM | 19845 | >30000 | - | - | 5.6.4-m7 | Explain details |
