Spider Storage Engine Overview

About

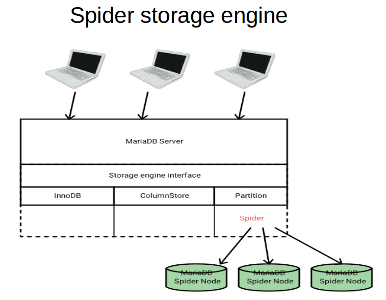

The Spider storage engine is a storage engine with built-in sharding features. It supports partitioning and xa transactions, and allows tables of different MariaDB instances to be handled as if they were on the same instance. It refers to one possible implementation of ISO/IEC 9075-9:2008 SQL/MED.

When a table is created with the Spider storage engine, the table links to the table on a remote server. The remote table can be of any storage engine. The table link is concretely achieved by the establishment of the connection from a local MariaDB server to a remote MariaDB server. The link is shared for all tables that are part of a the same transaction.

Spider Versions in MariaDB

Some Server Variables to Set When Using Spider

slave_transaction_retry_errors="1158,1159,1160,1161,1429,2013,12701"

Usage

Basic Usage

To create a table in the Spider storage engine format, the COMMENT and/or CONNECTION clauses of the CREATE TABLE statement are used to pass connection information about the remote server.

For example, the following table exists on a remote server (in this example, the remote node was created with the MySQL Sandbox tool, an easy way to test with multiple installations)::

node1 >CREATE TABLE s(
  id INT NOT NULL AUTO_INCREMENT,
  code VARCHAR(10),
  PRIMARY KEY(id));

On the local server, a Spider table can be created as follows:

CREATE TABLE s(
  id INT NOT NULL AUTO_INCREMENT,
  code VARCHAR(10),
  PRIMARY KEY(id)
)
ENGINE=SPIDER
COMMENT='host "127.0.0.1", user "msandbox", password "msandbox", port "8607"';

Records can now be inserted on the local server, and they will be stored on the remote server:

INSERT INTO s(code) VALUES ('a');

node1 > SELECT * FROM s;
+----+------+
| id | code |
+----+------+
|  1 | a    |
+----+------+

CREATE SERVER srv FOREIGN DATA WRAPPER mysql OPTIONS(
  HOST '127.0.0.1',
  USER 'msandbox',
  PASSWORD 'msandbox',
  PORT 8607);

CREATE TABLE s(
  id INT NOT NULL AUTO_INCREMENT,
  code VARCHAR(10),
  PRIMARY KEY(id)
)
ENGINE=SPIDER REMOTE_SERVER="srv" REMOTE_DATABASE="db" REMOTE_TABLE="s";

Further Examples

Preparing 10M record table using the sysbench utility

/usr/local/skysql/sysbench/bin/sysbench --test=oltp  --db-driver=mysql  --mysql-table-engine=innodb --mysql-user=skysql --mysql-password=skyvodka --mysql-host=192.168.0.202 --mysql-port=5054 --oltp-table-size=10000000  --mysql-db=test  prepare

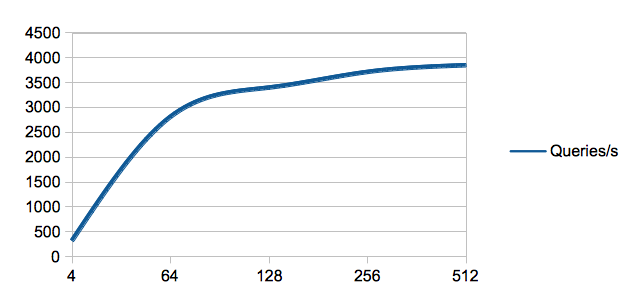

Make a first read only benchmark to check the initial single node performance.

/usr/local/skysql/sysbench/bin/sysbench --test=oltp  --db-driver=mysql  --mysql-table-engine=innodb --mysql-user=skysql --mysql-password=skyvodka --mysql-host=192.168.0.202 --mysql-port=5054 --mysql-db=test --oltp-table-size=10000000 --num-threads=4 --max-requests=100000 --oltp-read-only=on run

sysbench 0.4.12:  multi-threaded system evaluation benchmark

Running the test with following options:
Number of threads: 4

Doing OLTP test.
Running mixed OLTP test
Doing read-only test
Using Special distribution (12 iterations,  1 pct of values are returned in 75 pct cases)
Using "BEGIN" for starting transactions
Using auto_inc on the id column
Maximum number of requests for OLTP test is limited to 100000
Threads started!
Done.

OLTP test statistics:
    queries performed:
        read:                            1400196
        write:                           0
        other:                           200028
        total:                           1600224
    transactions:                        100014 (1095.83 per sec.)
    deadlocks:                           0      (0.00 per sec.)
    read/write requests:                 1400196 (15341.58 per sec.)
    other operations:                    200028 (2191.65 per sec.)

Test execution summary:
    total time:                          91.2681s
    total number of events:              100014
    total time taken by event execution: 364.3693
    per-request statistics:
         min:                                  1.85ms
         avg:                                  3.64ms
         max:                                 30.70ms
         approx.  95 percentile:               4.66ms

Threads fairness:
    events (avg/stddev):           25003.5000/84.78
    execution time (avg/stddev):   91.0923/0.00

Define an easy way to access the nodes from the MariaDB or MySQL client.

alias backend1='/usr/local/skysql/mysql-client/bin/mysql  --user=skysql --password=skyvodka --host=192.168.0.202 --port=5054'
alias backend2='/usr/local/skysql/mysql-client/bin/mysql  --user=skysql --password=skyvodka --host=192.168.0.203 --port=5054'
alias spider1='/usr/local/skysql/mysql-client/bin/mysql  --user=skysql --password=skyvodka --host=192.168.0.201 --port=5054'

Create the empty tables to hold the data and repeat for all available backend nodes.

backend1 << EOF
CREATE DATABASE backend;
CREATE TABLE backend.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
EOF

backend2 << EOF
CREATE DATABASE backend;
CREATE TABLE backend.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
EOF

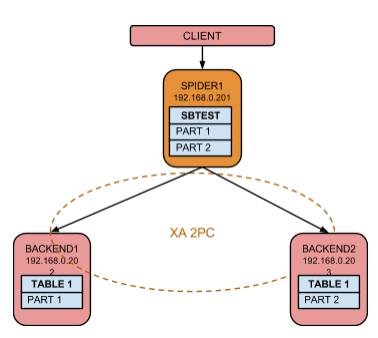

Federation Setup

spider1 << EOF
CREATE SERVER backend
  FOREIGN DATA WRAPPER mysql
OPTIONS(
  HOST '192.168.0.202',
  DATABASE 'test',
  USER 'skysql',
  PASSWORD 'skyvodka',
  PORT 5054
);

CREATE  TABLE test.sbtest
(
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=spider COMMENT='wrapper "mysql",srv "backend"';
SELECT * FROM test.sbtest LIMIT 10;
EOF

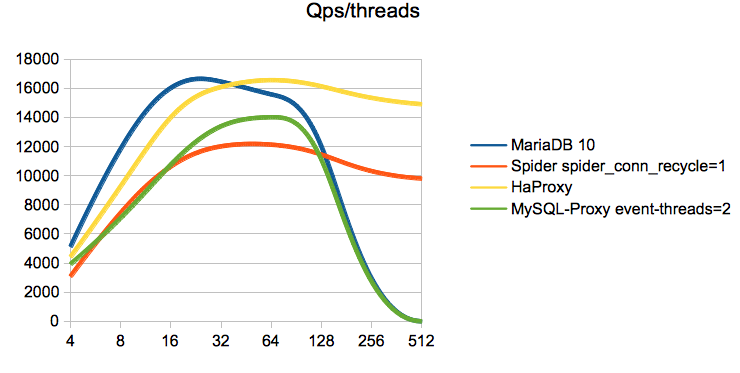

Without connection pool or MariaDB thread pool, HaProxy and Spider have been protecting the tcp socket overflow without specific TCP tuning. In reality with a well tuned TCP stack or thread pool the curve should not decrease so abruptly to 0. Refer to the MariaDB Thread Pool to explore this feature.

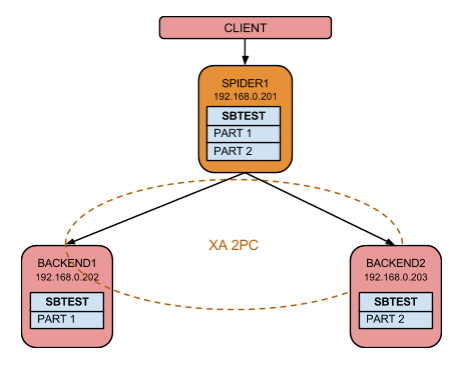

Sharding Setup

Create the spider table on the Spider Node

#spider1 << EOF
CREATE SERVER backend1
  FOREIGN DATA WRAPPER mysql
OPTIONS(
  HOST '192.168.0.202',
  DATABASE 'backend',
  USER 'skysql',
  PASSWORD 'skyvodka',
  PORT 5054
);
CREATE SERVER backend2
  FOREIGN DATA WRAPPER mysql
OPTIONS(
  HOST '192.168.0.203',
  DATABASE 'backend',
  USER 'skysql',
  PASSWORD 'skyvodka',
  PORT 5054
);
CREATE DATABASE IF NOT EXISTS backend;
CREATE  TABLE backend.sbtest
(
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
 PARTITION BY KEY (id)
(
 PARTITION pt1 COMMENT = 'srv "backend1"',
 PARTITION pt2 COMMENT = 'srv "backend2"'
) ;
EOF

Copy the data from the original sysbench table to the spider table

#/usr/local/skysql/mariadb/bin/mysqldump  --user=skysql --password=skyvodka --host=192.168.0.202 --port=5054 --no-create-info test sbtest | spider1 backend

#backend2 -e"select count(*) from backend.sbtest;"
+----------+
| count(*) |
+----------+
|  3793316 |
+----------+
#backend1 -e"select count(*) from backend.sbtest;"
+----------+
| count(*) |
+----------+
|  6206684 |
+----------+

We observe a common issue with partitioning is a non uniform distribution of data between the backends. based on the partition key hashing algorithm.

Rerun the Benchmark with less queries

#/usr/local/skysql/sysbench/bin/sysbench --test=oltp  --db-driver=mysql  --mysql-table-engine=innodb --mysql-user=skysql --mysql-password=skyvodka --mysql-host=192.168.0.201 --mysql-port=5054 --mysql-db=backend --mysql-engine-trx=yes --oltp-table-size=10000000 --num-threads=4 --max-requests=100 --oltp-read-only=on run

OLTP test statistics:
    queries performed:
        read:                            1414
        write:                           0
        other:                           202
        total:                           1616
    transactions:                        101    (22.95 per sec.)
    deadlocks:                           0      (0.00 per sec.)
    read/write requests:                 1414   (321.30 per sec.)
    other operations:                    202    (45.90 per sec.)

Test execution summary:
    total time:                          4.4009s
    total number of events:              101
    total time taken by event execution: 17.2960
    per-request statistics:
         min:                                114.48ms
         avg:                                171.25ms
         max:                                200.98ms
         approx.  95 percentile:             195.12ms

Threads fairness:
    events (avg/stddev):           25.2500/0.43
    execution time (avg/stddev):   4.3240/0.04

The response time decreases to 0.04. This is expected because the query latency is increased from multiple network round trips and condition push down is not implemented yet. Sysbench doing a lot of range queries. Just consider for now that this range query can be a badly optimized query.

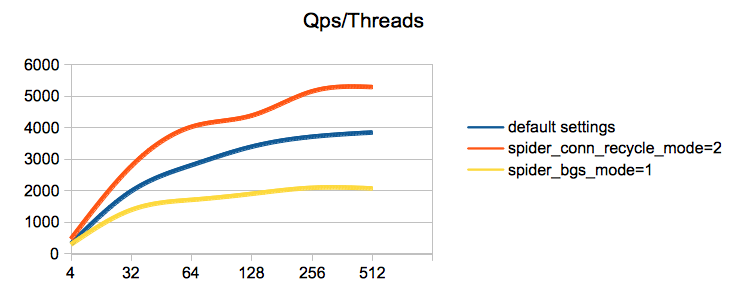

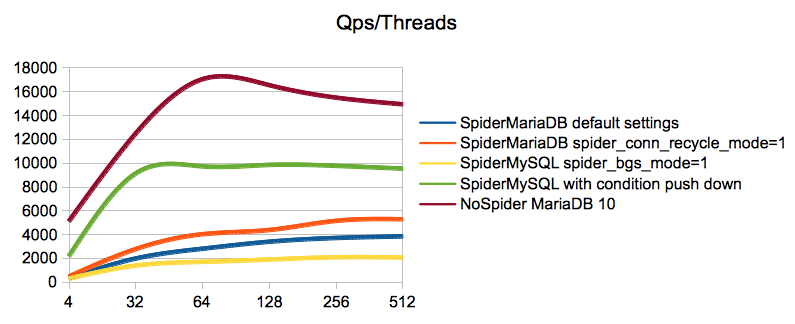

We need to increase the concurrency to get better throughput.

Background Setup

We have no background search available in MariaDB. It won't be available before MariaDB 10.2, but the next table definition mainly enables improving the performance of a single complex query plan with background search that can be found via the upstream spiral binaries MariaDB branch.

We have 4 cores per backend and 2 backends .

On backend1

#backend1 << EOF
CREATE DATABASE bsbackend1;
CREATE DATABASE bsbackend2;
CREATE DATABASE bsbackend3;
CREATE DATABASE bsbackend4;
CREATE TABLE bsbackend1.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
CREATE TABLE bsbackend2.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
CREATE TABLE bsbackend3.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
CREATE TABLE bsbackend4.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
EOF

On backend2

#backend2 << EOF
CREATE DATABASE bsbackend5;
CREATE DATABASE bsbackend6;
CREATE DATABASE bsbackend7;
CREATE DATABASE bsbackend8;
CREATE TABLE bsbackend5.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
CREATE TABLE bsbackend6.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
CREATE TABLE bsbackend7.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
CREATE TABLE bsbackend8.sbtest (
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=InnoDB;
EOF

On Spider Node

#spider2 << EOF
CREATE SERVER bsbackend1 FOREIGN DATA WRAPPER mysql OPTIONS( HOST '192.168.0.202', DATABASE 'bsbackend1',USER 'skysql', PASSWORD 'skyvodka',PORT 5054);
CREATE SERVER bsbackend2 FOREIGN DATA WRAPPER mysql OPTIONS( HOST '192.168.0.202', DATABASE 'bsbackend2',USER 'skysql', PASSWORD 'skyvodka',PORT 5054);
CREATE SERVER bsbackend3 FOREIGN DATA WRAPPER mysql OPTIONS( HOST '192.168.0.202', DATABASE 'bsbackend3',USER 'skysql', PASSWORD 'skyvodka',PORT 5054);
CREATE SERVER bsbackend4 FOREIGN DATA WRAPPER mysql OPTIONS( HOST '192.168.0.202', DATABASE 'bsbackend4',USER 'skysql', PASSWORD 'skyvodka',PORT 5054);
CREATE SERVER bsbackend5 FOREIGN DATA WRAPPER mysql OPTIONS( HOST '192.168.0.203', DATABASE 'bsbackend5',USER 'skysql', PASSWORD 'skyvodka',PORT 5054);
CREATE SERVER bsbackend6 FOREIGN DATA WRAPPER mysql OPTIONS( HOST '192.168.0.203', DATABASE 'bsbackend6',USER 'skysql', PASSWORD 'skyvodka',PORT 5054);
CREATE SERVER bsbackend7 FOREIGN DATA WRAPPER mysql OPTIONS( HOST '192.168.0.203', DATABASE 'bsbackend7',USER 'skysql', PASSWORD 'skyvodka',PORT 5054);
CREATE SERVER bsbackend8 FOREIGN DATA WRAPPER mysql OPTIONS( HOST '192.168.0.203', DATABASE 'bsbackend8',USER 'skysql', PASSWORD 'skyvodka',PORT 5054);

CREATE DATABASE IF NOT EXISTS bsbackend;
CREATE  TABLE bsbackend.sbtest
(
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
 PARTITION BY KEY (id)
(
 PARTITION pt1 COMMENT = 'srv "bsbackend1"',
 PARTITION pt2 COMMENT = 'srv "bsbackend2"',
 PARTITION pt3 COMMENT = 'srv "bsbackend3"',
 PARTITION pt4 COMMENT = 'srv "bsbackend4"',
 PARTITION pt5 COMMENT = 'srv "bsbackend5"',
 PARTITION pt6 COMMENT = 'srv "bsbackend6"',
 PARTITION pt7 COMMENT = 'srv "bsbackend7"',
 PARTITION pt8 COMMENT = 'srv "bsbackend8"'
) ;
EOF
INSERT INTO  bsbackend.sbtest SELECT * FROM backend.sbtest;

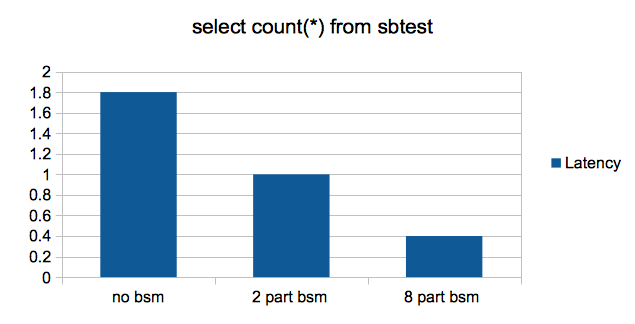

Now test the following query :

select count(*) from sbtest;
+----------+
| count(*) |
+----------+
| 10000001 |
+----------+
1 row in set (8,38 sec)

set spider_casual_read=1;
set spider_bgs_mode=2;

select count(*) from sbtest;
+----------+
| count(*) |
+----------+
| 10000001 |
+----------+
1 row in set (4,25 sec)

mysql> select sum(k) from sbtest;
+--------+
| sum(k) |
+--------+
|      0 |
+--------+
1 row in set (5,67 sec)

mysql> set spider_casual_read=0;
mysql> select sum(k) from sbtest;
+--------+
| sum(k) |
+--------+
|      0 |
+--------+
1 row in set (12,56 sec)

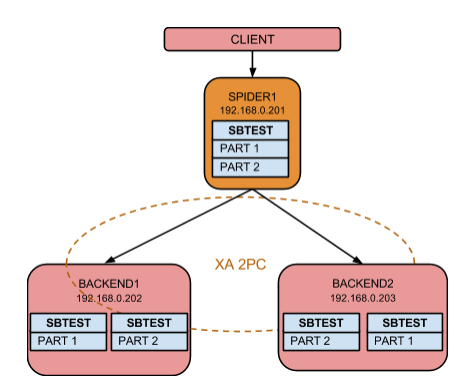

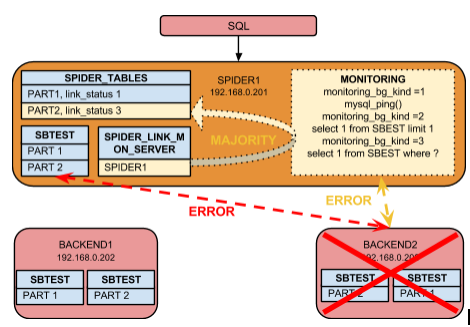

High Availability Setup

#backend1 -e "CREATE DATABASE backend_rpl"
#backend2 -e "CREATE DATABASE backend_rpl"

#/usr/local/skysql/mariadb/bin/mysqldump  --user=skysql --password=skyvodka --host=192.168.0.202 --port=5054  backend sbtest | backend1 backend_rpl
#/usr/local/skysql/mariadb/bin/mysqldump  --user=skysql --password=skyvodka --host=192.168.0.203 --port=5054  backend sbtest | backend2 backend_rpl

#spider1 << EOF
DROP TABLE backend.sbtest;
CREATE SERVER backend1_rpl
  FOREIGN DATA WRAPPER mysql
OPTIONS(
  HOST '192.168.0.202',
  DATABASE 'backend_rpl',
  USER 'skysql',
  PASSWORD 'skyvodka',
  PORT 5054
);
CREATE SERVER backend2_rpl
  FOREIGN DATA WRAPPER mysql
OPTIONS(
  HOST '192.168.0.203',
  DATABASE 'backend_rpl',
  USER 'skysql',
  PASSWORD 'skyvodka',
  PORT 5054
);
CREATE  TABLE backend.sbtest
(
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
 PARTITION BY KEY (id)
(
 PARTITION pt1 COMMENT = 'srv "backend1 backend2_rpl"',
 PARTITION pt2 COMMENT = 'srv "backend2 backend1_rpl"'
) ;
INSERT INTO backend.sbtest select 10000001, 0, '' ,'replicas test';
EOF
#backend1 -e "SELECT * FROM backend.sbtest WHERE id=10000001";
+----------+---+---+---------------+
| id       | k | c | pad           |
+----------+---+---+---------------+
| 10000001 | 0 |   | replicas test |
+----------+---+---+---------------+
# backend2 -e "SELECT * FROM backend.sbtest where id=10000001";
# backend2 -e "SELECT * FROM backend_rpl.sbtest where id=10000001";
+----------+---+---+---------------+
| id       | k | c | pad           |
+----------+---+---+---------------+
| 10000001 | 0 |   | replicas test |
+----------+---+---+---------------+

What is happening if we stop one backend?

#spider1 -e "SELECT * FROM backend.sbtest where id=10000001";
ERROR 1429 (HY000) at line 1: Unable to connect to foreign data source: backend1

Let's fix this with spider monitoring. Note that msi is the list of spider nodes @@server_id variable participating in the quorum.

#spider1 << EOF
DROP  TABLE backend.sbtest;
CREATE  TABLE backend.sbtest
(
  id int(10) unsigned NOT NULL AUTO_INCREMENT,
  k int(10) unsigned NOT NULL DEFAULT '0',
  c char(120) NOT NULL DEFAULT '',
  pad char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (id),
  KEY k (k)
) ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
 PARTITION BY KEY (id)
(
 PARTITION pt1 COMMENT = 'srv "backend1 backend2_rpl",  mbk "2", mkd "2", msi "5054", link_status "0 0"',
 PARTITION pt2 COMMENT = 'srv "backend2 backend1_rpl",  mbk "2", mkd "2", msi "5054", link_status "0 0" '
) ;

CREATE SERVER mon
  FOREIGN DATA WRAPPER mysql
OPTIONS(
  HOST '192.168.0.201’,
  DATABASE 'backend',
  USER 'skysql',
  PASSWORD 'skyvodka',
  PORT 5054
);
INSERT INTO `mysql`.`spider_link_mon_servers` VALUES
('%','%','%',5054,'mon',NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL,0,NULL,NULL);
SELECT spider_flush_table_mon_cache();
EOF

Monitoring should be setup between Spider nodes participating in the cluster. We only have one Spider Node and spider_link_mon_servers represent the inter-connection of all Spider nodes in our setup.

This simple setup does not bring HA in case the Spider Node is not available. In a production setup the number of Spider Nodes in the spider_link_mon_servers table should be at least 3 to get a majority consensus.

#spider1 -e "SELECT * FROM backend.sbtest WHERE id=10000001"
+----------+---+---+---------------+
| id       | k | c | pad           |
+----------+---+---+---------------+
| 10000001 | 0 |   | replicas test |
+----------+---+---+---------------+

Checking the state of the nodes:

#spider1 -e "SELECT db_name, table_name,server  FROM mysql.spider_tables WHERE link_status=3"
+---------+--------------+----------+
| db_name | table_name   | server   |
+---------+--------------+----------+
| backend | sbtest#P#pt1 | backend1 |
+---------+--------------+----------+

No change has been made to cluster, so let's create a divergence:

# spider1 -e "INSERT INTO backend.sbtest select 10000003, 0, '' ,'replicas test';"
# backend1 -e "SELECT * FROM backend.sbtest WHERE id=10000003"
# backend2 -e "SELECT * FROM backend_rpl.sbtest WHERE id=10000003"
+----------+---+---+---------------+
| id       | k | c | pad           |
+----------+---+---+---------------+
| 10000003 | 0 |   | replicas test |
+----------+---+---+---------------+

Reintroducing the failed backend1 in the cluster:

#spider1 << EOF
ALTER TABLE backend.sbtest
ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
 PARTITION BY KEY (id)
(
 PARTITION pt1 COMMENT = 'srv "backend1 backend2_rpl"  mbk "2", mkd "2", msi "5054", link_status "2 0"',
 PARTITION pt2 COMMENT = 'srv "backend2 backend1_rpl"  mbk "2", mkd "2", msi "5054", link_status "0 2" '
) ;
select spider_copy_tables('backend.sbtest#P#pt1','0','1');
select spider_copy_tables('backend.sbtest#P#pt2','1','0');
ALTER TABLE backend.sbtest
ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
 PARTITION BY KEY (id)
(
 PARTITION pt1 COMMENT = 'srv "backend1 backend2_rpl"  mbk "2", mkd "2", msi "5054", link_status "1 0"',
 PARTITION pt2 COMMENT = 'srv "backend2 backend1_rpl"  mbk "2", mkd "2", msi "5054", link_status "0 1" '
) ;
EOF
